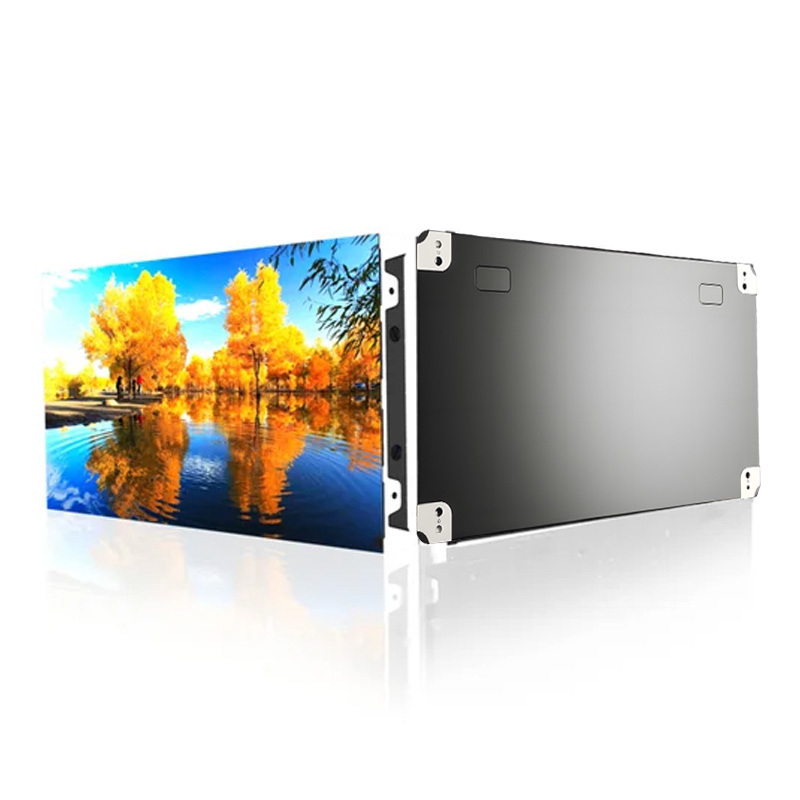

Name: P0.9 P1.25 COB LED Display 3840Hz Refresh Rate 1000cd Brightness
Brand: Hunan Caiyi Photoelectric Technology Co., Ltd
SKU: Cob005
Price: 349.00 USD
Availability: InStock

Produktdetails

Herkunftsort: CHINA

Modellnummer: Cob005

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1

Preis: $329-369

Erhalten Sie besten Preis

Produktdetails

Produkt-Beschreibung

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                P0.9 COB LED display with 3840Hz refresh rate, P1.25 COB LED display 1000cd brightness, high brightness COB LED display with warranty


Blickwinkel:	170 °	Pixel -Tonhöhe:	0,62 mm, 0,78 mm, 0,93 mm, 1,25 mm, 1,5625 mm, 1,875 mm
Pixeldichte:	2560000, 1638400, 1137777, 640000, 409600, 284444	Modulgröße:	150*168,75 mm
Modulauflösung:	240270, 192216, 160180, 120135, 96108, 8090	Kabinettsgröße:	600337,539,75 mm
Kabinettsauflösung:	960540, 768432, 640 × 360, 480 × 270, 384 × 216, 320 × 180	Kabinettsgewicht:	~ 4 kg
Oberflächenhärte:	4H	Helligkeit:	600nit, 550nit
Stromverbrauch:	700W/235W	Betriebsspannung:	Ac100 ~ 240 V
Aktualisierungsrate:	1920Hz-3840Hz	Farbtemperatur:	50 & 60
Kontrastverhältnis:	10000: 1

Blickwinkel:	170 °
Pixel -Tonhöhe:	0,62 mm, 0,78 mm, 0,93 mm, 1,25 mm, 1,5625 mm, 1,875 mm
Pixeldichte:	2560000, 1638400, 1137777, 640000, 409600, 284444
Modulgröße:	150*168,75 mm
Modulauflösung:	240270, 192216, 160180, 120135, 96108, 8090
Kabinettsgröße:	600337,539,75 mm
Kabinettsauflösung:	960540, 768432, 640 × 360, 480 × 270, 384 × 216, 320 × 180
Kabinettsgewicht:	~ 4 kg
Oberflächenhärte:	4H
Helligkeit:	600nit, 550nit
Stromverbrauch:	700W/235W
Betriebsspannung:	Ac100 ~ 240 V
Aktualisierungsrate:	1920Hz-3840Hz
Farbtemperatur:	50 & 60
Kontrastverhältnis:	10000: 1

P0.9 P1.25 COB LED Display 3840Hz Refresh Rate 1000cd Brightness

P0.9 P1.25 Indoor Fixed LED Wall Panel - 2K/4K COB LED Display Screen

High-performance indoor LED display screen featuring advanced COB technology for superior image quality and durability.

Advantages Over Traditional LED SMD Technology

Flip-chip COB package using Mini/Micro LED chips
Direct integration and packaging on PCB board through solid crystal and molding methods
Simplified packaging process without soldering requirements
Eliminates SMD reflow soldering processes, preventing soldering-related failures
Enhanced protective performance and extended product lifespan
Lower dead lamp rate with smaller pitch and higher resolution

Key Features

Gorgeous Picture: Non-reflective screen for superior viewing experience

Perfect Image: Special IC for LED with high refresh rate (no shadows)

Light Weight: Aluminum profile cabinet (4-7kg) - lightweight and non-corrosive

Elegant Appearance: CNC processed modules for seamless assembly

Easy Setup: Simplified back module connections

Front Service Design: Space-saving with reduced maintenance costs

Cable-free Design

Faster setup with reduced labor and time requirements. Simplified installation process with neat cable arrangement and reduced clutter.

Superior Visual Performance

16bit grayscale for smooth color transitions
10000:1 contrast ratio for vivid images
Seamless cabinet splicing with no visible lines
Low blue light emission with UHD quality
3840Hz high refresh rate with full color spectrum
Ultra-wide 170° viewing angle (horizontal/vertical)

Precision Aluminum Cabinet

High strength construction with exceptional flatness (±0.1mm tolerance) for perfectly seamless displays. Enhanced heat dissipation extends operational lifespan.

Front IP65 Protection

Waterproof, dustproof, anti-oxidation, anti-static and shock-resistant design ensures stable performance and extended screen lifespan.

Ultra Thin and Light Design

Only 39.75mm depth with individual cabinet weight of just 4kg.

Full Front Maintenance

Simplified installation and maintenance with cable-free design. Modules can be replaced in seconds using special suction tools. Flexible wall-mount capability.

Technical Specifications

Model	P0.62	P0.78	P0.93	P1.25	P1.5625	P1.875
Pixel Pitch	0.62mm	0.78mm	0.93mm	1.25mm	1.5625mm	1.875mm
Pixel Density	2,560,000	1,638,400	1,137,777	640,000	409,600	284,444
Module Resolution	240×270	192×216	160×180	120×135	96×108	80×90
Cabinet Resolution	960×540	768×432	640×360	480×270	384×216	320×180
Brightness	600nit	600nit	600nit	600nit	600nit	550nit
Power Consumption	700W (max) / 235W (typical)
View Angle	160°±10°
Refresh Rate	1920Hz-3840Hz

Ideal Applications

Control Centers
Studios
Business Centers
Exhibition Halls
Stages
Technology Venues
Entertainment Venues
Corporate Exhibition Spaces
